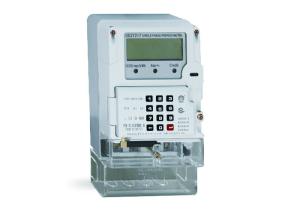

Keypad Meter with interchangeable Module
General introduction
Keypad Meter with interchangeable Module has the functions such as metering, monitoring, alarm, display, communication and load control, etc. It adopts STS standard encryption algorithm to exchange the information based on TOKEN. Advantages of the meter are high metering accuracy, high level security, strong compatibility, easy operation, etc.
Technical specifications
| Items | contents |
| Standards | IEC62052-11; IEC62053-21;IEC62053-23; IEC62055-31;IEC62055-41;IEC62055-51; |
| Accuracy | Active:Class 1 |
| Protocol | IEC62056-21 |
| Reference voltage | 120V/220V/230V/240V |
| Current | 5(60)A,10(80)A |
| Reference frequency | 50/60 Hz |
| Power consumption | ≤1.5W, 6VA |
| Operation voltage range | 0.8Un~1.2Un |
| Limited operation voltage range | 0.7Un~1.3Un |
| Operation temperature | -25℃~ +60℃ |
| Limited operation temperature range | -40℃~ +70℃ |
| RTC deviation | ≤0.5s/d |
| Life time | 15 years |
| Size | 184mm(L)×120mm(W)×55mm(H) |
| Net weight | About 0.7kg |
Main functions
Four tariffs; two sets of time zone tables; two sets of time period tables; support public holidays and weekends
Support emergency credit
Detecting and recording events such as current reverse, magnetic influence, phase bypass, meter cover open, terminal cover open, overvoltage, under voltage, etc.
Detecting current reverse, magnetic influence, phase bypass, meter cover open, terminal cover open etc, at the same time the meter can disconnect power supply which is configurable when the tampers occur.
Audio and visual alarm which can be configurable can be for power flow reverse, magnetic influence, phase bypass, meter cover open, terminal cover open, etc.
Detecting the customer's load status, it can alarm or disconnect the load when overload.
Optical port and RS485 interface are available; PLC, RF, GPRS,3G or twist-wire interface are optional.
PLC, RF or twist-wire are optional.
certificate
Risesun has formally carried out the globalization management strategy. Its sales turnover has increased steadily year by year, with sales reaching 3 billion yuan in the past three years. Its products and solutions have already been successfully applied in a number of countries and regions like Nepal, Vietnam, Pakistan, India, Bangladesh, Philippines, Peru, Cuba, Columbia, Ecuador, Brazil, Zimbabwe, Tanzania, Ethiopia, Russia and etc., and have obtained the unanimous praises from customers. A main source of its sales revenues in the future will be from the international trade business.
