1 Phase STS Keypad Prepaid AMI Energy Meter IEC 62052 11 1.5W 6VA

Zhejiang Risesun Science and Technology Co.,Ltd.
Contact Now

1 Phase STS Keypad Prepaid AMI Energy Meter IEC 62052 11 1.5W 6VA

Brand Name : RISESUN

Model Number : DDZY217

Certification : KEMA

Place of Origin : China. Zhejiang

MOQ : 500 pcs

Price : negotiation

Payment Terms : L/C, T/T,negotiation

Supply Ability : 100,000 pcs per month

Delivery Time : 30 work days

Packaging Details : Carton

Name : 1 Phase STS Keypad Prepaid AMI Energy Meter IEC 62052 11 1.5W 6VA

Standards : IEC62052-11; IEC62053-21;IEC62053-23; IEC62055-31;IEC62055-41;IEC62055-51;

Protocol : IEC62056-21

Reference voltage : 120V/220V/230V/240V

Current : 5(60)A,10(80)A

Life time : 15 years

Size : 184mm(L)×120mm(W)×55mm(H)

Contact Now

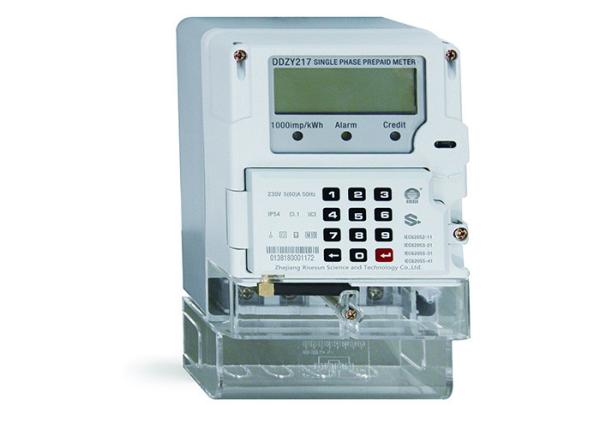

Single Phase STS Keypad Prepaid strong compatibility Meter

General introduction

Single Phase STS Keypad Prepaid strong compatibility Meter has the functions such as metering, monitoring, alarm, display, communication and load control, etc.It adopts STS standard encryption algorithm to exchange the information based on TOKEN. Advantages of the meter are high metering accuracy, high level security, strong compatibility, easy operation, etc.

Technical specifications

Items contents
Standards IEC62052-11; IEC62053-21;IEC62053-23; IEC62055-31;IEC62055-41;IEC62055-51;
Accuracy Active:Class 1
Protocol IEC62056-21
Reference voltage 120V/220V/230V/240V
Current 5(60)A,10(80)A
Reference frequency 50/60 Hz
Power consumption ≤1.5W, 6VA
Operation voltage range 0.8Un~1.2Un
Limited operation voltage range 0.7Un~1.3Un
Operation temperature -25℃~ +60℃
Limited operation temperature range -40℃~ +70℃
RTC deviation ≤0.5s/d
Life time 15 years
Size 184mm(L)×120mm(W)×55mm(H)
Net weight About 0.7kg

Main functions

Support UIU

  • TOU:Four tariffs; two sets of time zone tables; two sets of time period tables; support public holidays and weekends
  • Step tariffs
  • Friendly power supply: Support emergency credit
  • Events logs: Detecting and recording events such as current reverse, magnetic influence, phase bypass, meter cover open, terminal cover open, overvoltage, under voltage, etc.
  • Anti-tamper: Detecting current reverse, magnetic influence, phase bypass, meter cover open, terminal cover open etc, at the same time the meter can disconnect power supply which is configurable when the tampers occur.
  • Audio and visual alarm: Audio and visual alarm which can be configurable can be for power flow reverse, magnetic influence, phase bypass, meter cover open, terminal cover open, etc.
  • Load control: Detecting the customer's load status, it can alarm or disconnect the load when overload.
  • Communication interface: Optical port and RS485 interface are available; PLC, RF, GPRS,3G or twist-wire interface are optional.
  • UIU interface: PLC, RF or twist-wire are optional.

Certificate

1 Phase STS Keypad Prepaid AMI Energy Meter IEC 62052 11 1.5W 6VA

Our Company

Zhejiang Risesun Science and Technology Co., Ltd.is a famous professional supplier of energy measuring meters and acquisition systems of consumed energy information, and it is a national level high and new technology enterprise with the business range of research and development, production, sale and after-sales service for energy measuring meters and acquisition systems of consumed energy information. Its main products cover smart energy meter, din rail energy meter, STS keypad prepaid energy meter, multifunction energy meter, acquisition terminal of special transformer, data acquisition system, charging pile of electric auto, metering box and etc. It is one of the companies with the most technical influence and development potential in the electric energy metering instrument industry of China.

Risesun is one of the earliest enterprises in meter industry forming Management System of ISO9001:2008, ISO14001: 2004 and OHSAS18001: 2007. Moreover, a variety of leading products have passed quality certifications of the international authoritative organizations like the Holland KEMA, the European Union CE-MID, South Africa STS, Switzerland DLMS and etc.

Risesun has formally carried out the globalization management strategy. Its sales turnover has increased steadily year by year, with sales reaching 3 billion yuan in the past three years. Its products and solutions have already been successfully applied in a number of countries and regions, and have obtained the unanimous praises from customers. A main source of its sales revenues in the future will be from the international trade business.

Today's Risesun, just as a round of Oriental Sun, is rising and creating greater glories with the help of the national macroscopic policy good solution and its research and development potential.
